Diakool Air Conditioners
Diakool Ducted Unit - 4.0 Ton DLTMD-C48/4R1A
Diakool Ducted Unit - 4.0 Ton DLTMD-C48/4R1A
Energy Rating:

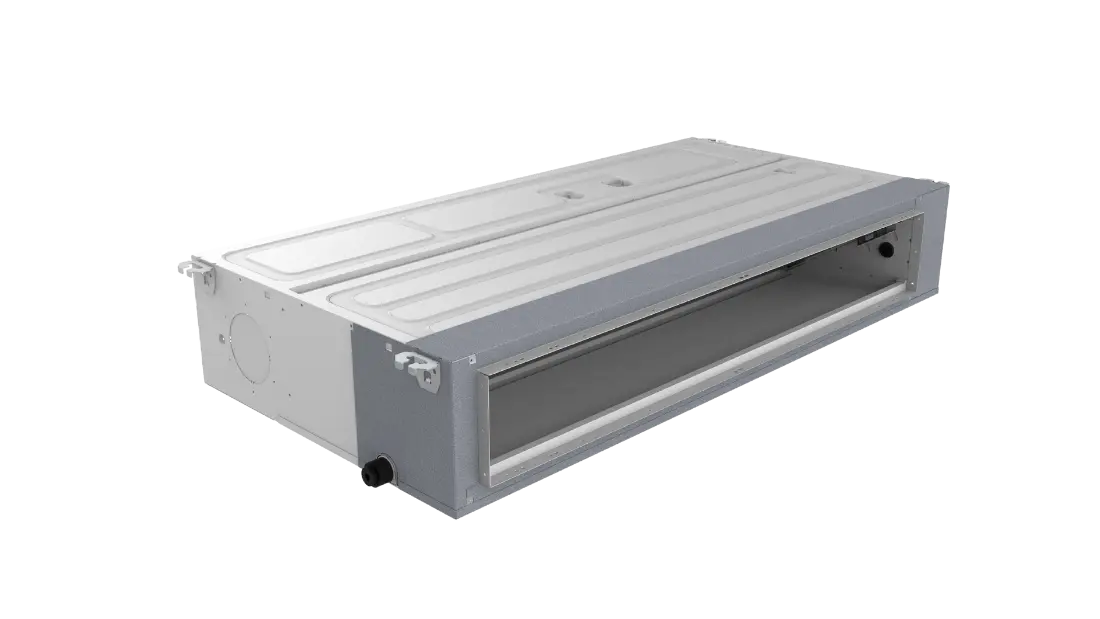

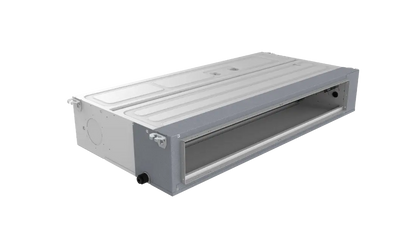

Indoor Model: DLTMD-C48/4R1A

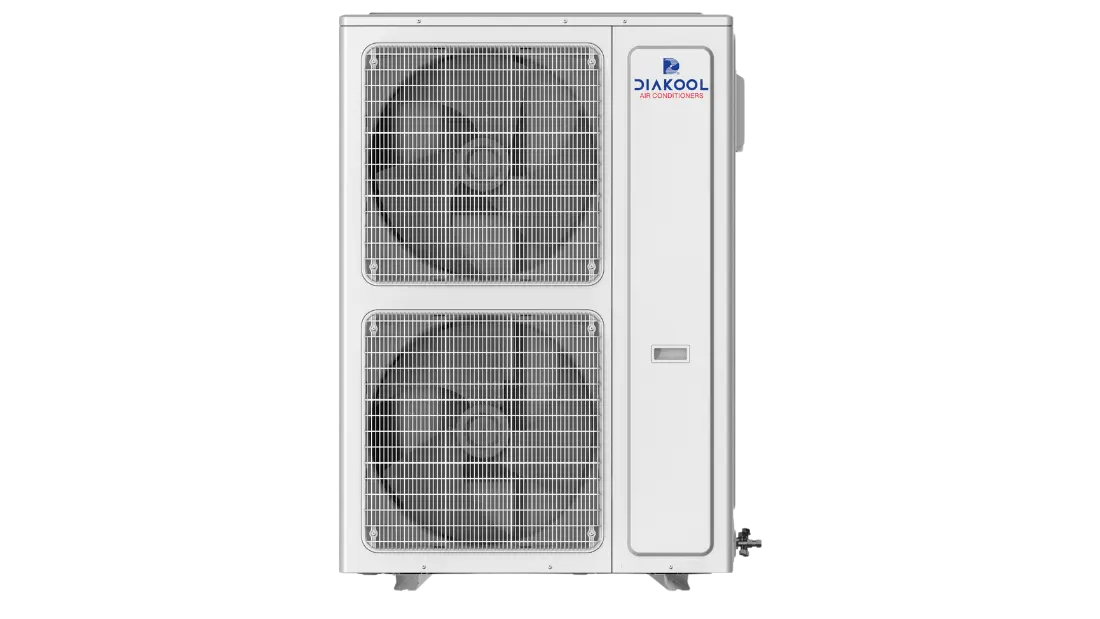

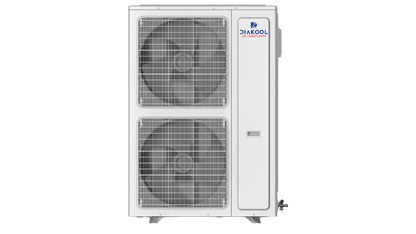

Outdoor Model: DLT-48/4R1A (U)
BTU: 48,000
Refrigerant: R410A
Couldn't load pickup availability
Complete Features
DIAKOOL Duct Series air conditioners are engineered for powerful performance, energy efficiency, and flexible installation. Built with a high-efficiency T3 rotary compressor, they ensure reliable cooling even in extreme climates. The compact design allows for easy ceiling installation, making them ideal for both residential and commercial spaces. With features like Auto Restart, Self-Diagnostic Function, Smart WiFi, the Duct Series combines smart functionality with durable, low-noise operation and consistent airflow control.
Find Out more Features
Technical Specifications
| Parameter | DLTMD-C48/4R1A |
|---|---|
| Cooling Capacity | 47,800 / 45,200 BTU/h (T1/T3) |
| Cooling Capacity (kW) | 14.00 / 13.24 |
| Cooling Power Consumption | 4.25 / 5.30 kW (T1/T3) |
| Running Current | 18.50 / 23.50 A |
| EER | 11.24 / 8.52 BTU/h/W |
| Refrigerant | R410A |
| Noise Level (Indoor) | 50 / 48 / 46 / 44 dB(A) |
| Noise Level (Outdoor) | 60 dB(A) |
| Air Flow Volume (Indoor) | 2100 / 2000 / 1900 / 1700 m³/h |
| Outdoor Air Flow Volume | 5000 m³/h |
| Outdoor Unit Weight (Net) | 74 Kg |
